平凸透镜一般要求用于聚焦、扩束、成像。平凸透镜被广泛应用到显示系统、物镜系统、成像光学系统、激光光学系统中。
H-K9L是常用光学玻璃之一，当不需要紫外熔融石英材质额外优点（在紫外波段具有很好透过率和较低热膨胀系数）时，一般选H-K9L材质。H-K9L(N-BK7)平凸透镜常用于聚焦平行光或者准直点光源，从可见到近红外（350-2000nm）具有优异透过率。在对光汇聚时，如果获得低于0.2或大于5的绝对 放大率，通常选平凸透镜。当放大率介于0.2和5之间时，双凸透镜更为合适。为减少球差，聚焦时平行光应入射到曲面上。K9平凸透镜可选择多种镀膜。
.jpg)
材 料: H-K9L
直径公差: 0.0/-0.1mm
厚度公差: ±0.1mm
焦距公差: ±1%
设计波长: 587.6nm
通光孔径: ≥90%
表面质量: 40/20(Diameter≤25.4mm),
60/40(Diameter＞25.4mm)
面 型: λ/4@633nm
偏 心: ≤3′
倒 角: 0.3×45°(Diameter≤50.8mm),
0.4×45°(Diameter＞50.8mm)
镀 膜: MGF增透膜: 单层MgF2, Ravg<1.75% per surface@400-700nm
A增透膜: Ravg<0.5% per surface@370-675nm
B增透膜: Ravg<0.5% per surface@650-1050nm
C增透膜: Ravg<0.5% per surface@1050-1620nm
AB增透膜: Ravg<1.25% per surface@400-1000nm
V增透膜: R<0.25% per surface (532nm, 808nm, 1064nm等波长单点镀膜)
注：提供未镀膜，A，B，C膜产品，其它镀膜定制。
|

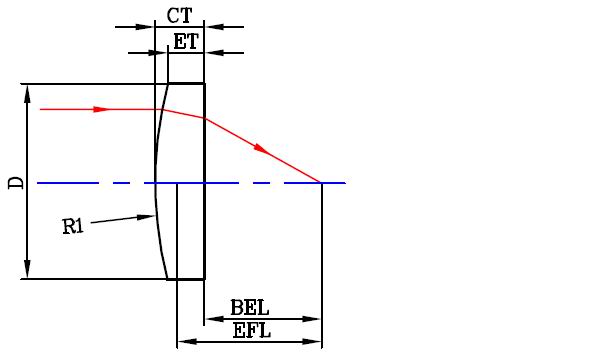

编号 |
尺寸(mm) |
有效焦距 |
后焦距 |
中心厚度 |
边缘厚度 |
半径 |
F# |
材料 |
|
PCX01-001 |
3 |
6 |
4.8 |
1.8 |
1.4 |
3.10 |
2.0 |
H-K9L |
|
PCX01-002 |
3 |
9 |
8.0 |
1.5 |
1.2 |
4.65 |
3.0 |
H-K9L |
|
PCX01-003 |
3 |
12 |
11.3 |
1.1 |
0.9 |
6.20 |
4.0 |
H-K9L |
|
PCX01-004 |
5 |
7.8 |
6.5 |
2.0 |
1.1 |
4.02 |
1.6 |
H-K9L |
|
PCX01-005 |
6 |
12 |
10.9 |
1.6 |
0.8 |
6.20 |
2.0 |
H-K9L |
|
PCX01-006 |
6 |
15 |
13.7 |
2.0 |
1.4 |
7.75 |
2.5 |
H-K9L |
|
PCX01-007 |
6 |
21 |
20.1 |
1.4 |
1.0 |
10.85 |
3.5 |
H-K9L |
|
PCX01-008 |
6 |
30 |
29.1 |
1.3 |
1.0 |
15.50 |
5.0 |
H-K9L |
|
PCX01-009 |
6 |
48 |
47.0 |
1.6 |
1.4 |
24.81 |
8.0 |
H-K9L |
|
PCX01-010 |
7 |
7.7 |
5.9 |
2.8 |
0.7 |
4.00 |
1.1 |
H-K9L |
|
PCX01-011 |
9 |
17.6 |
16.0 |
2.5 |
1.3 |
9.09 |
2.0 |
H-K9L |
|
PCX01-012 |
9 |
22 |
20.7 |
1.9 |
1.0 |
11.37 |
2.4 |
H-K9L |
|
PCX01-013 |
9 |
36 |
34.5 |
2.3 |
1.8 |
18.61 |
4.0 |
H-K9L |
|
PCX01-014 |
10 |
20 |
18.0 |
3.0 |
1.7 |
10.34 |
2.0 |
H-K9L |
|
PCX01-015 |
10 |
25 |
23.0 |
3.0 |
2.0 |
12.92 |
2.5 |
H-K9L |
|
PCX01-016 |
10 |
40 |
38.0 |
3.0 |
2.4 |
20.67 |
4.0 |
H-K9L |
|
PCX01-017 |
11 |
31.5 |
30.1 |
2.2 |
1.2 |
16.30 |
2.9 |
H-K9L |
|
PCX01-018 |
12.7 |
15 |
11.5 |
5.3 |
1.9 |
7.75 |
1.2 |
H-K9L |
|
PCX01-019 |
12.7 |
19.6 |
16.9 |
4.1 |
1.9 |
10.14 |
1.5 |
H-K9L |
|
PCX01-020 |
12.7 |
25.4 |
23.4 |
3.0 |
1.4 |
13.13 |
2.0 |
H-K9L |
|
PCX01-021 |
12.7 |
38.1 |
36.1 |
3.0 |
2.0 |
19.69 |
3.0 |
H-K9L |
|
PCX01-022 |
12.7 |
50.8 |
49.2 |
2.5 |
1.7 |
26.25 |
4.0 |
H-K9L |
|
PCX01-023 |
15 |
30 |
27.9 |
3.2 |
1.3 |
15.52 |
2.0 |
H-K9L |
|
PCX01-024-550 |
16 |
43 |
40.8 |
3.4 |
1.9 |
22.28 |
2.7 |
H-K9L |
|
PCX01-025 |
18 |
36 |
33.7 |
3.6 |
1.3 |
18.62 |
2.0 |
H-K9L |
|
PCX01-026 |
18 |
54 |
52.0 |
3.0 |
1.5 |
27.91 |
3.0 |
H-K9L |
|
PCX01-027 |
18 |
72 |
70.1 |
3.0 |
1.9 |
37.22 |
4.0 |
H-K9L |
|
PCX01-028 |
20 |
35 |
32.0 |
4.5 |
1.5 |
18.09 |
1.8 |
H-K9L |
|
PCX01-029 |
20 |
39.9 |
36.7 |
4.9 |
2.3 |
20.65 |
2.0 |
H-K9L |
|
PCX01-030 |
20 |
40 |
36.8 |
4.9 |
2.3 |
20.67 |
2.0 |
H-K9L |
|
PCX01-031 |
20 |
50 |
47.9 |
3.2 |
1.2 |
25.84 |
2.5 |
H-K9L |
|
PCX01-032 |
20 |
60 |
57.0 |
4.5 |
2.8 |
31.01 |
3.0 |
H-K9L |
|
PCX01-033 |
20 |
70 |
68.0 |
3.0 |
1.6 |
36.18 |
3.5 |
H-K9L |
|
PCX01-034 |
20 |
80 |
78.5 |
2.4 |
1.1 |
41.48 |
4.0 |
H-K9L |
|
PCX01-035 |
20 |
100 |
97.1 |
4.3 |
3.3 |
51.68 |
5.0 |
H-K9L |
|
PCX01-036 |
20 |
150 |
148.0 |
3.0 |
2.4 |
77.52 |
7.5 |
H-K9L |
|
PCX01-037 |
24 |
76.2 |
73.6 |
4.0 |
2.1 |
39.38 |
3.2 |
H-K9L |
|
PCX01-038 |
25 |
30 |
24.7 |
8.1 |
1.7 |
15.50 |
1.2 |
H-K9L |
|
PCX01-039 |
25 |
35 |
30.4 |
7.0 |
2.0 |
18.11 |
1.4 |
H-K9L |
|
PCX01-040 |
25 |
40 |
36.3 |
5.6 |
1.4 |
20.67 |
1.6 |
H-K9L |
|
PCX01-041 |
25 |
50 |
46.8 |
4.9 |
1.7 |
25.84 |
2.0 |
H-K9L |
|
PCX01-042 |
25 |
60 |
56.9 |
4.7 |
2.1 |
31.01 |
2.4 |
H-K9L |
|
PCX01-043 |
25 |
75 |
72.0 |
4.5 |
2.4 |
38.76 |
3.0 |
H-K9L |
|
PCX01-044 |
25 |
85 |
82.2 |
4.3 |
2.5 |
43.93 |
3.4 |
H-K9L |
|
PCX01-045 |
25 |
100 |
97.2 |
4.3 |
2.8 |
51.68 |
4.0 |
H-K9L |
|
PCX01-046 |
25 |
125 |
122.7 |
3.5 |
2.3 |
64.62 |
5.0 |
H-K9L |
|
PCX01-047 |
25 |
150 |
147.8 |
3.5 |
2.5 |
77.55 |
6.0 |
H-K9L |
|
PCX01-048 |
25 |
175 |
172.9 |
3.5 |
2.6 |
90.47 |
7.0 |
H-K9L |
|
PCX01-049 |
25 |
250 |
248.0 |
3.0 |
2.4 |
129.20 |
10.0 |
H-K9L |
|
PCX01-050 |
25 |
300 |
298.0 |
3.0 |
2.5 |
155.04 |
12.0 |
H-K9L |
|
PCX01-051 |
25 |
500 |
497.9 |
3.2 |
2.9 |
258.40 |
20.0 |
H-K9L |
|
PCX01-052 |
25 |
750 |
747.9 |
3.2 |
3.0 |
387.60 |
30.0 |
H-K9L |
|
PCX01-053 |
25.4 |
38.1 |
33.5 |
7.0 |
2.4 |
19.69 |
1.5 |
H-K9L |
|
PCX01-054 |
25.4 |
50.8 |
47.5 |
5.0 |
1.7 |
26.25 |
2.0 |
H-K9L |
|
PCX01-055 |
25.4 |
63.5 |
60.4 |
4.8 |
2.2 |
32.82 |
2.5 |
H-K9L |
|
PCX01-056 |
25.4 |
76.2 |
73.6 |
4.0 |
1.9 |
39.38 |
3.0 |
H-K9L |
|
PCX01-057 |
25.4 |
76.5 |
73.9 |
4.0 |
1.9 |
39.55 |
3.0 |
H-K9L |
|
PCX01-058 |
25.4 |
88.9 |
86.3 |
4.0 |
2.2 |
45.94 |
3.5 |
H-K9L |
|
PCX01-059 |
25.4 |
101.6 |
99.0 |
4.0 |
2.4 |
52.51 |
4.0 |
H-K9L |
|
PCX01-060 |
30 |
60 |
56.1 |
6.0 |
2.1 |
31.01 |
2.0 |
H-K9L |
|
PCX01-061 |
30 |
100 |
96.0 |
6.0 |
3.8 |
51.68 |
3.3 |
H-K9L |
|
PCX01-062 |
30 |
120 |
116.0 |
6.0 |
4.2 |
62.02 |
4.0 |
H-K9L |
|
PCX01-063 |
40 |
60 |
53.9 |
9.3 |
2.0 |
31.03 |
1.5 |
H-K9L |
|
PCX01-064 |
40 |
300 |
296.7 |
5.0 |
3.7 |
155.04 |
7.5 |
H-K9L |
|
PCX01-065 |
40 |
400 |
396.7 |
5.0 |
4.0 |
206.72 |
10.0 |
H-K9L |
